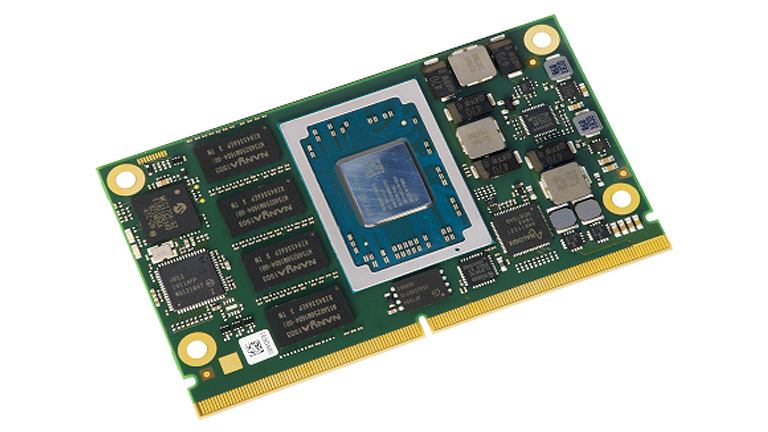

MSC SM2S-RYZ2
SimpleFlex, Application-Ready Embedded Platform SMARC™ 2.1
SimpleFlex is the intelligent combination of a standard Computer-On-Module with a standard carrier board. It combines the advantages of Standard SBC and Custom SBC by choosing the COM from a huge portfolio of CPU and memory configuration.
This is the basis for innovative solutions in HMI systems, complex display systems, IoT gateways, professional infotainment systems, object recognition systems, transportation applications, medical devices, gaming systems and building automation, among others.
The ready-to-use platform is cost-efficiently adapted with the selected interfaces and assembled in-house at full-automatic production lines. For the customization, more than 30 pre-validated interface combinations are available. SimpleFlex is therefore best suited for series production with large quantities.
- SMARC™ 2.1 carrier board for short size modules
- HDMI/DisplayPort connector
- USB Type-C (with DisplayPort)
- LVDS/eDP/MIPI-DSI connector
- Regulated backlight supply
- up to two Gigabit Ethernet ports
- Mini PCI Express Card slot
- M.2 key M slot
- One USB 3.0 Type A
- One USB 2.0 Type A
- One USB 2.0 OTG port
- Four UART, RS232, RS485
- Two CAN (one CAN opt. galv. isolated)
- SPI/eSPI, 12 GPIO
- HD or I2S audio interface with 2x 2.5W Stereo Amplifier
- MIPI CSI-2 camera interface
- µSD Card socket
- WLAN/BT/NFC with antenna (option)
- Fan connector
- RTC battery
- Input voltage 10 VDC to 36VDC
- Form Factor (146 x 80 mm)
