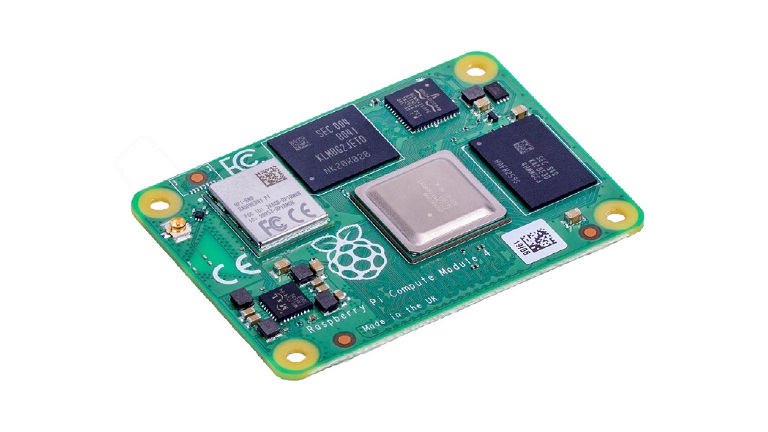

Raspberry Pi Compute Module 4

Raspberry Pi Compute Module 4 harnesses the computing power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products. Raspberry Pi Compute Module 4 incorporates a quad-core Arm^® Cortex^®-A72 processor, dual video output, and a wide selection of other interfaces. It is available in 32 variants with a range of RAM and eMMC Flash options, and with or without wireless connectivity. Raspberry Pi Compute Module 4 harnesses the computing power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor, suitable for integration into products.

Key features

• High-performance 64-bit quad-core processor
• Up to 8GB of RAM
• Gigabit Ethernet
• Dual camera interfaces

Additional features

• High-performance 64-bit quad-core Arm^® Cortex^®-A72 processor
• OpenGL ES 3.0 graphics
• Hardware video decode:
  • H.265 (HEVC) at up to 4Kp60 decode
  • H.264 at up to 1080p60 decode and 1080p30 encode
• Up to 8 GB of LPDDR4-3200 SDRAM
• Gigabit Ethernet with IEEE 1588 support
• PCIe Gen 2 x1 interface (5 Gbps)
• Highspeed USB 2.0 port
• 28 × GPIO supporting either 1.8 or 3.3 V signaling and peripheral options:
  • Up to 6 x UART
  • Up to 6 × I²C
  • Up to 5 × SPI
  • 1 × DPI (Parallel RGB Display)
  • 1 × PCM
  • Up to 2 x PWM channels
  • Up to 3 × GPCLK outputs
• Dual HDMI 2.0 interfaces (up to 4Kp60 supported)
• Dual MIPI DSI interfaces (MIPI Serial Display):
  • 1 × 2-lane MIPI DSI display port
  • 1 × 4-lane MIPI DSI display port
• Dual MIPI CSI-2 interfaces (MIPI Serial Camera):
  • 1 × 2-lane MIPI CSI camera port
  • 1 × 4-lane MIPI CSI camera port
• 1 × SDIO 2.0 interface or eMMC (optional)
• Certified radio module (optional):
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
  • Bluetooth 5.0, BLE
  • Onboard electronic switch for antenna selection
• Single 5 V power supply input
• Form factor: 55 × 40 mm

Applications

• Embedded industrial applications

Additional Info

The optional dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be embedded into end products with significantly reduced compliance testing, improving both cost and time to market. An onboard electronic switch allows selecting either external or PCB trace antenna. Raspberry Pi Compute Module 4 comes with an optional onboard eMMC of 8 GB, 16 GB, or 32 GB.
